Description
1. Technical Performance and Specifications

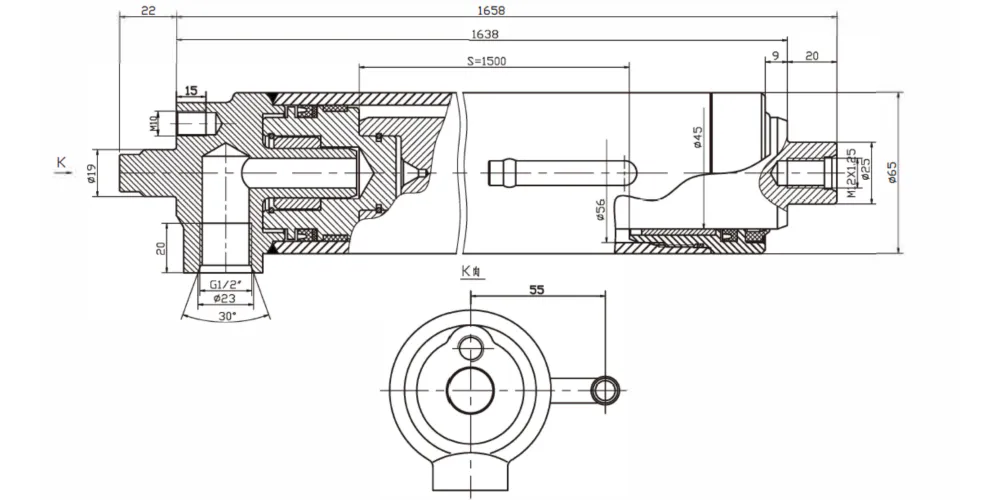

| Forklift lifting cylinder | ||||||
|---|---|---|---|---|---|---|
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
| HCYY11112000 | Φ56×Φ45×1500 | 18.1MPa | 27.15MPa | 1500 | 1658 | 33kg |
2. The Science of Precision: Working Principle
The forklift tilt cylinder operates on the principle of double-acting hydraulic pressure. Unlike single-acting cylinders that rely on gravity or springs for the return stroke, our hydraulic forklift tilt cylinder utilizes pressurized fluid on both sides of the piston. When the operator initiates the tilt command, hydraulic oil is pumped into the cylinder, extending or retracting the rod to adjust the mast’s angle. This forklift hydraulic cylinder diagram logic ensures that the mast remains locked in position once the control valve is closed, preventing accidental load shifts. This mechanism is vital for maintaining the center of gravity of the lift trucks & tables forklift tilt cylinder assemblies, especially when navigating slopes or uneven surfaces common in Colombian construction sites.
3. Engineered for Durability: Materials and Construction
The longevity of a forklift tilt cylinder is determined by the quality of its components. Our EP-HCY-1 series utilizes high-tensile ST52.3 cold-drawn steel tubes, precision-honed to a mirror finish to reduce internal wear. The piston rod is crafted from 40Cr steel, which undergoes induction hardening and hard chrome plating to a thickness of 25-30 microns. This protects the small forklift tilt cylinder against corrosion and mechanical impact. For Colombian industries dealing with chemicals or outdoor exposure, we offer optional coatings in navy blue forklift tilt cylinder or black forklift tilt cylinder finishes for enhanced environmental resistance. Crucially, the forklift tilt cylinder seal kit features high-grade polyurethane and NBR components that maintain their elasticity and sealing properties even under the high temperatures generated during intensive shifts.
4. Versatile Application Scenarios
Agricultural Processing
Perfect for Colombian coffee and sugar cane processing facilities where forklift hydraulic tilt cylinder systems must handle bulk containers with precision and stability during the harvest season.
Port Logistics & Cold Storage
Ideal for lift cylinder forklift applications in Cartagena and Barranquilla, providing resistant dimensions forklift tilt cylinder options that withstand saline air and temperature fluctuations.
Construction & Mining
Designed for heavy-duty hyster forklift tilt cylinder replacements in rugged environments, ensuring the mast remains stable when transporting building materials on unpaved terrain.
5. Professional Insights: Engineer Field Notes
“The installation of the EP-HCY-1 series in our 3-ton forklift fleet in Bogotá has shown a significant reduction in mast drift. The forklift tilt cylinder seal replacement interval has extended by 40% compared to our previous OEM parts. The precision of the tilt angle allows our operators to handle fragile floral export crates with zero damage.”
— Senior Maintenance Engineer, Logistics Hub (Colombia)
“Purchased as a bulk replacement for our hyster forklift tilt cylinder stock. The technical specs were a perfect match. What impressed us most was the 18.1 MPa working pressure stability. For a Colombian distributor, having a reliable forklift mast cylinder supplier is a game-changer for our service department.”
— Operations Manager, Industrial Parts Importer (Colombia)
6. Integrated Power Solutions
High-Precision Gearboxes
We provide world-class Gearboxes that integrate seamlessly with our hydraulic systems, ensuring a one-stop-shop for your agricultural and industrial machinery needs. Our system compatibility ensures maximum energy efficiency.
Flexible Couplings
Enhance your power transmission with our specialized Couplings, designed to pair with Gearboxes for vibration reduction and extended component life. Experience the advantage of our one-stop supply chain.
7. Global Quality, Local Reliability
As a professional forklift tilt cylinder manufacturer, our pursuit of excellence permeates every stage of production, from initial research and development to final testing. We possess a modern, intelligent manufacturing base with independent R&D capabilities and are one of the leading professional hydraulic cylinder production bases. We focus on the development of core intellectual property rights, ensuring that every forklift tilt cylinder we produce meets international advanced standards. Adhering to a pragmatic and efficient engineering philosophy, we serve the global community and create a better future for the logistics industry.
WorkShop
Frequently Asked Questions
Q1: How can I find the correct forklift tilt cylinder seal kit for my EP-HCY-1 model in Colombia?
Finding the right forklift tilt cylinder seal kit is easy if you provide us with your model serial number; we maintain local stock in Colombia for rapid delivery.
Q2: What is a tilt cylinder forklift component used for in daily material handling operations?
The tilt cylinder is essential for rotating the mast, allowing the forks to tilt back to cradle a load or tilt forward to unload cargo at height.
Q3: What is the difference between lift cylinder and tilt cylinder performance in heavy-duty stacking?
The lift cylinder forklift handles vertical load weight, whereas the tilt cylinder manages the stability and horizontal alignment of the load.
Q4: How do the dimensions forklift tilt cylinder measurements affect the compatibility with different mast types?
The dimensions forklift tilt cylinder parameters, such as the 156mm stroke and 70mm bore, must match your mast’s mounting points to ensure safe and efficient operation.
Q5: Which specific boat steering parts forklift tilt cylinder technologies are integrated into these heavy-duty industrial designs?
While designed for forklifts, we utilize precision hydraulic sealing technologies often found in boat steering parts forklift tilt cylinder systems for superior leakage prevention.
Q6: Why should I choose a black forklift tilt cylinder over standard galvanized finishes for harsh environments?
A black forklift tilt cylinder provides an extra layer of industrial-grade coating that resists corrosion and chemical exposure better than basic metallic finishes.
Q7: What are the different types of forklift cylinders available for a multi-stage mast configuration?
Forklifts typically use lift cylinders for vertical movement, tilt cylinders for angular control, and steering cylinders for wheel guidance; we supply all three types.
Q8: How often should a forklift tilt cylinder seal replacement be performed to prevent hydraulic fluid leaks?
We recommend a forklift tilt cylinder seal replacement inspection every 1,000 hours of operation to ensure the 18.1 MPa pressure remains stable.
