1. Technical Specifications & Performance Data

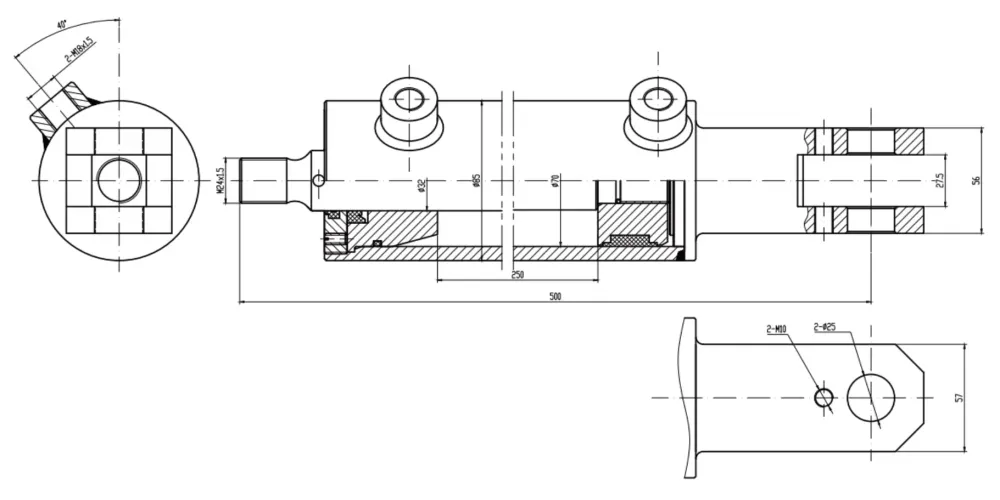

The EP-HCYA-3 is built to exceed standard industrial requirements. Understanding the technical nuances of the Cylinder For Forklift Accessories allows maintenance managers to optimize their fleet performance. Below are the core specifications derived from the HCYY11112028 engineering blueprint:
| Cylinder model | Specifications | Working pressure | Maximum withstand pressure | Trip | Installation distance | Weight |
|---|---|---|---|---|---|---|
| HCYY11112028 | Φ70×Φ32×250 | 25MPa | 35MPa | 250 | 500 | 12.5kg |
2. Features of hydraulic cylinders for forklift parts
This cylinder is engineered to handle the rigorous demands of tilting and lifting operations in high-capacity forklift trucks. Whether you are operating in the bustling ports of Busan or a precision warehouse in Seoul, the EP-HCYA-3 ensures smooth, controlled movement. Its design focuses on reducing fluid friction and maximizing force output, which is critical for maintaining load stability during steep-angle maneuvers. By integrating advanced sealing technology, this Cylinder For Forklift Accessories prevents internal drift, a common issue in lower-quality hydraulic systems. The integration of high-tensile steel and chrome-plated rods ensures that this unit can withstand harsh environmental conditions, including salt spray in coastal regions and extreme temperature fluctuations in cold storage facilities.
3. Working principle of hydraulic power pack
The working principle of this Cylinder For Forklift Accessories is based on Pascal’s Law, where hydraulic fluid is transmitted through a pressurized system to create linear motion. When the forklift operator engages the tilt or lift control, a hydraulic pump sends high-pressure fluid into either the cap end or the rod end of the EP-HCYA-3. As fluid fills the Φ70 bore, it exerts force against the piston, pushing the Φ32 chrome-plated rod outward (extension) or pulling it inward (retraction). This movement is translated into the mechanical tilting of the forklift mast. The precision-machined internal surfaces and high-quality forklift tilt cylinder seal kit ensure that there is minimal internal leakage, allowing the forklift to hold its position even under full load. The 250mm trip length is specifically calibrated to provide a perfect range of motion for standard material handling tasks, ensuring that the center of gravity remains within safe limits. Advanced buffering technology is often integrated at the stroke ends to prevent mechanical shock when the cylinder reaches its 500mm installation limit, thereby extending the lifespan of the entire forklift chassis and the forklift hydraulic lift cylinder.
4. Material Composition & Durability
Material science is at the heart of our Cylinder For Forklift Accessories. The main barrel is constructed from ST52.3 cold-drawn seamless steel tubes, which are honed to a surface finish of Ra 0.2μm to 0.4μm. This smoothness is essential to prevent the forklift tilt cylinder seal kit from wearing down prematurely. The piston rod is made from C45 medium carbon steel, which undergoes high-frequency induction hardening followed by hard chrome plating (minimum 20-30 microns). This plating provides exceptional resistance to corrosion and mechanical scratching, which is vital when operating in dusty construction sites or humid environments. For the South Korean market, we ensure all materials comply with industrial safety standards, offering superior fatigue resistance. The seals used are sourced from premium suppliers (such as Hallite or SKF), capable of maintaining structural integrity at pressures up to 35 MPa.
5. Application Scenarios
Port & Terminal HandlingIdeal for lift trucks & tables, forklift tilt cylinder applications in busy ports like Busan, where speed and precision are required for container management.
Cold Storage Logistics: The high-grade seals in the EP-HCYA-3 prevent hydraulic fluid thickening and seal contraction in low-temperature environments, perfect for Korean food distribution centers.
6. Global Compliance & Regulatory Standards
Our Cylinder For Forklift Accessories is manufactured to adhere to stringent international and local regulations. In South Korea, we comply with the Occupational Safety and Health Act (KOSHA), ensuring that all lifting components pass rigorous pressure tests and safety factor checks. Internationally, these cylinders meet the ISO 4413 standards for hydraulic fluid power and the EU Machinery Directive 2006/42/EC. These regulations mandate specific safety factors (usually 4:1 for structural integrity) and fail-safe mechanisms to prevent load dropping in the event of a hose burst. Furthermore, for the North American market, our designs align with ANSI/ITSDF B56.1 safety standards for high lift and low lift trucks. By adhering to these global laws, we ensure that whether you are using a hyster forklift tilt cylinder or a custom OEM solution, the product is legal, safe, and efficient for cross-border operations.
7. About Us
We are a leading manufacturer specializing in hydraulic solutions for the material handling industry. Our facility utilizes state-of-the-art CNC machining, automatic welding robots, and precision honing machines to ensure every EP-HCYA-3 meets our exact standards. Our engineering team is dedicated to continuous improvement, ensuring that our lift cylinder forklift products remain at the forefront of technology, offering durability and performance that our global partners rely on every day.
WorkShop
8. Field Engineer Notes & Reviews
Usage: Fleet Replacement for Heavy-Duty Tilt Operations
Field Note: We recently replaced the aging tilt units on our 5-ton fleet with the EP-HCYA-3 Cylinder For Forklift Accessories. The installation distance of 500mm was a perfect match for our existing mounts. Our engineers noted a significant reduction in mast jitter during full-extension lifts. The 25MPa working pressure is handled with ease, and even after 1,000 cycles, there is zero evidence of fluid seepage around the rod seals. This is a top-tier choice for Korean industrial standards.
Usage: OEM Upgrade for Hyster Fleet
Field Note: Integrating the EP-HCYA-3 into our Hyster forklift series was seamless. The Φ70 bore provides the exact torque required for tilting heavy lumber pallets. The chrome finish on the rod is particularly impressive; we operate in a high-dust environment, and the scrapers are doing an excellent job protecting the internal seals. It’s a robust hydraulic solution that outperforms many of the local aftermarket cylinders we’ve tested.
9. Related Products & One-Stop Solutions
Agricultural Power Components
Beyond forklift hydraulics, we offer a full range of high-compatibility Gearboxes and PTO shafts designed for seamless integration. Our one-stop service ensures that your heavy machinery systems are perfectly synchronized for maximum efficiency.
Frequently Asked Questions (FAQ)
Q1: How does the maximum withstand pressure of 35MPa protect my forklift system during extreme overloads?
The 35MPa rating provides a significant safety margin above the 25MPa working pressure, preventing catastrophic failure if the system experiences sudden pressure spikes
Q2: Why is the installation distance of 500mm critical for the EP-HCYA-3 Cylinder For Forklift Accessories compatibility?
The installation distance determines if the cylinder will fit between your forklift’s anchor points when fully retracted, which is essential for proper mechanical alignment.
Q3: What are the main differences between a standard lift cylinder and a high-precision tilt cylinder for forklifts?
A lift cylinder primarily handles vertical weight, while a tilt cylinder manages the mast angle, requiring more precise drift control and robust sealing.
Q4: How do I choose the correct size Cylinder For Forklift Accessories based on my specific machinery dimensions?
You should match the bore diameter, rod diameter, and stroke length (trip) with your forklift’s original manufacturer specifications to ensure perfect mechanical fitment.
Q5: When should I consider a full forklift hydraulic cylinder replacement instead of just using a repair kit?
If the internal barrel walls are scratched or the piston rod is bent, a full replacement is safer and more cost-effective than a temporary repair.
Q6: What specific hydraulic fluid is recommended for the EP-HCYA-3 Cylinder For Forklift Accessories in cold climates?
We recommend using high-viscosity index (HVI) anti-wear hydraulic oil, which maintains stability across the temperature ranges typical of Korean winter seasons.
Q7: Which industrial safety regulations must a Cylinder For Forklift Accessories follow to be used in port operations?
The cylinder must comply with ISO 4413 and local KOSHA safety standards to ensure it can handle the dynamic loads of port logistics safely.
