1. Technical Specifications & Performance Data
To ensure the highest level of system compatibility, the EP-HCYA-1 follows a strict set of technical parameters derived from field-proven designs. Below is the detailed breakdown of the technical capabilities of this specific Cylinder For Forklift Accessories model.
| Cylinder model |
Specifications |
Working pressure |
Maximum withstand pressure |
Trip |
Installation distance |
Weight |
| EP-HCYA-1 Cylinder For Forklift Accessories |
Φ40×Φ20×200 |
25MPa |
35MPa |
200 |
450 |
6kg |

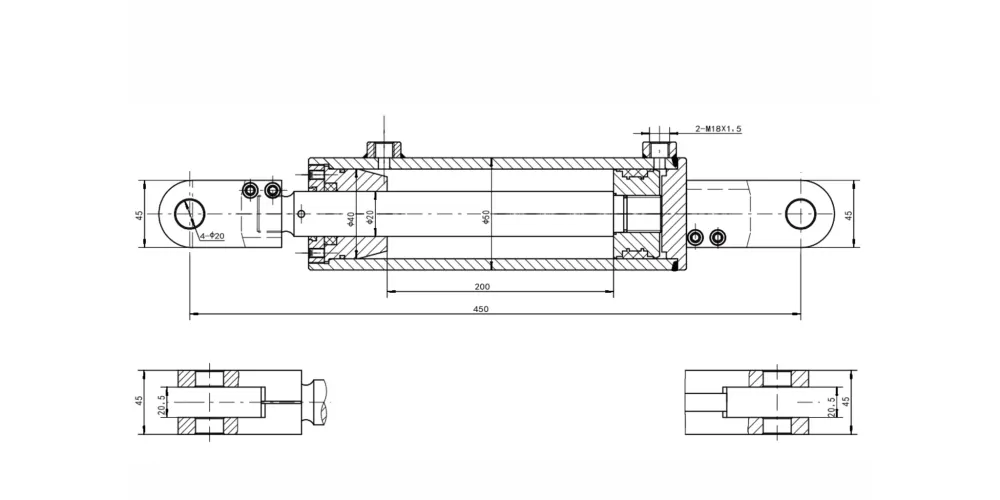

Cylinder For Forklift Accessories Diagram
2. Comprehensive Product Introduction
The EP-HCYA-1 is built to withstand extreme pressure environments, utilizing high-grade seals and reinforced steel bodies to prevent leaks and ensure longevity. Whether you are dealing with a forklift hydraulic lift cylinder for heavy-duty lifting or a forklift tilt cylinder for precise load adjustment, the EP-HCYA-1 provides the structural integrity required. The hydraulic forklift tilt cylinder is particularly critical for maintaining the center of gravity during high-stacking operations, where even a minor failure can lead to catastrophic accidents. By choosing the EP-HCYA-1, operators benefit from a component that has been rigorously tested against maximum withstand pressures of 35MPa, ensuring that even under peak load conditions, the system remains stable and responsive.
3. Working Principle of Hydraulic Actuation
The functional core of the EP-HCYA-1 Cylinder For Forklift Accessories lies in the principles of fluid mechanics and Pascal’s Law. As hydraulic fluid is pumped into the cylinder chamber under high pressure, it exerts a force against the internal piston. Because the fluid is incompressible, this pressure is converted directly into linear motion. The precision-machined rod, which is $\Phi 20$ in diameter, extends or retracts to facilitate the tilting or lifting movements of the forklift mast. This mechanism is governed by a complex forklift hydraulic cylinder diagram that manages flow rates and pressure valves to ensure smooth, jitter-free movement. Proper maintenance of the forklift tilt cylinder seal kit is essential to maintain this pressure integrity; even a microscopic leak can result in “drift,” where the mast fails to hold its position. Our design incorporates multi-stage sealing technology to prevent internal bypass and external leakage, ensuring the forklift mast cylinder operates with maximum efficiency.
4. Advanced Material Composition
To meet the rigorous demands of the global forklift industry, the EP-HCYA-1 utilizes high-strength alloy steel (typically 45# or 40Cr steel) for the main barrel and rod components. The rod surface undergoes a specialized chrome-plating process to achieve a hardness of HRC50-60, which provides exceptional resistance to abrasion, pitting, and corrosion. This is particularly important for the forklift tilt cylinder, which is often exposed to environmental contaminants during outdoor use.
5. Global Regulations and Compliance
The production and installation of the EP-HCYA-1 Cylinder For Forklift Accessories strictly adhere to international quality standards such as ISO 9001 and ISO 4413 for hydraulic fluid power. Specifically, for the South Korean market, our components comply with the Occupational Safety and Health Act (KOSHA) standards, ensuring that forklift tilt cylinder replacement parts meet the local safety certification requirements for heavy machinery. Furthermore, the European Machinery Directive 2006/42/EC and ANSI/ITSDF B56.1 standards for low and high lift trucks are fully considered during the design phase. These regulations mandate specific safety factors for hydraulic components to prevent mast collapse or uncontrolled load movement. Operators must ensure that any forklift hydraulic lift cylinder used in their fleet meets these regional legal requirements to avoid liability issues and ensure the highest level of workplace safety.
6. Versatile Application Scenarios
Smart Warehousing
The EP-HCYA-1 is ideal for automated forklift systems where precise positioning is required for high-density racking. Its stable performance ensures load safety in tight aisles.
Port & Logistics
Designed to handle the heavy-duty cycles of container handling and port operations, resisting saltwater corrosion through advanced surface treatments.
Manufacturing Hubs
Used in factory floor forklifts for the transport of raw materials and finished goods, providing the reliable lift cylinder forklift performance needed for 24/7 production lines.
7. About Our Expertise
As a professional forklift tilt cylinder manufacturer, our pursuit of excellence permeates every stage of production, from initial research and development to final testing. We possess a modern, intelligent manufacturing base with independent R&D capabilities and are one of the leading professional hydraulic cylinder production bases. We focus on the development of core intellectual property rights, ensuring that every forklift tilt cylinder we produce meets international advanced standards. Adhering to a pragmatic and efficient engineering philosophy, we serve the global community and create a better future for the logistics industry.
WorkShop
8. Field Notes: Engineer Perspectives
Senior Maintenance Engineer – South Korea (Incheon Port Operations)
During the recent overhaul of our forklift fleet handling heavy sea-containers, we integrated the EP-HCYA-1 Cylinder For Forklift Accessories into several 5-ton units. The immediate improvement in mast response time and the elimination of hydraulic drift was noticeable. The build quality of the rod and the precision of the installation distance (450mm) allowed for a perfect fit without modification. It is a reliable solution for high-cycle port environments where durability is paramount.
Fleet Operations Manager – Germany (Automotive Logistics)
Safety is our top priority when moving expensive automotive components. We replaced our aging tilt cylinders with the EP-HCYA-1 model. The 35MPa maximum withstand pressure gives us the safety margin we need for over-capacity handling. We specifically appreciate the ease of maintenance and the availability of compatible forklift tilt cylinder seal kit options, which has significantly reduced our annual maintenance costs.
